製品詳細
起源の場所: 中国
ブランド名: Ecolite/OEM/ODM
モデル番号: LTO24-70
支払及び船積みの言葉
最小注文数量: 5000
価格: Inquiry
パッケージの詳細: カートンパレット容器
受渡し時間: 1〜2か月
支払条件: L/C、T/T
供給の能力: 1か月あたり5000ユニット
公称電圧: |
12V |
定格容量: |
72Ah |
抵抗: |
≤12mΩ |
エネルギー: |
864Wh |
サイクルライフ: |
>10000サイクル @1C,80% DOD |
住宅保護: |
IP65 |
排出温度: |
-40 ℃〜85℃ |
充電温度: |
-40 ℃〜85℃ |
細胞 タイプ 化学: |
LTOセル |
BMS 高温切断線: |
90℃ |
重さ: |
11kg |
コミュニケーション: |
ブルートゥース |
公称電圧: |
12V |
定格容量: |
72Ah |
抵抗: |
≤12mΩ |
エネルギー: |
864Wh |
サイクルライフ: |
>10000サイクル @1C,80% DOD |
住宅保護: |
IP65 |
排出温度: |
-40 ℃〜85℃ |
充電温度: |
-40 ℃〜85℃ |
細胞 タイプ 化学: |
LTOセル |
BMS 高温切断線: |
90℃ |
重さ: |
11kg |
コミュニケーション: |
ブルートゥース |

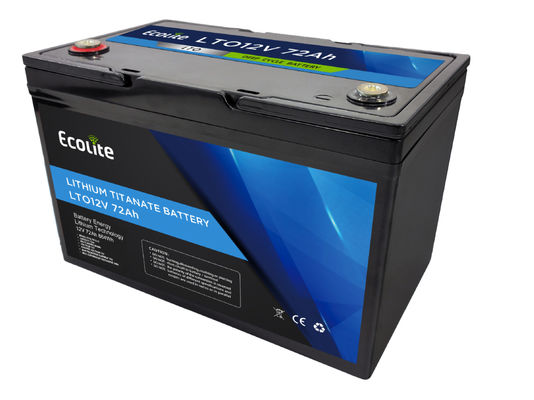

For RV adventurers braving frozen campgrounds, boat owners navigating saltwater extremes, or homeowners needing 24/7 backup power—finding an LTO Battery pack that combines unbeatable longevity, extreme temperature resilience, and blistering fast charging is transformative. The EcoLite LTO 12V72Ah (Lithium Titanate Oxide) battery redefines reliability: 864Wh of instant power, industry-leading 20,000+ cycles, and tailored performance for RV, marine, and energy storage needs—with full customization to match your unique setup.
Specifications
| Electrical Parameters | Mechanical Parameters | ||
| Battery Voltage | 12V | Dimension(WxDxH) | 260x168x209mm |
| Nominal Capacity | 72Ah | Dimension(WxDxH) | 10.24 x6.61x8.23 |
| Energy | 864Wh | Weight | 11kg |
| Resistance | ≤12mΩ | Terminal Type | M8 |
| Efficiency | ≥0.99 | Battery Housing | ABS |
| Cycle Life | >10000cycles @1C,80% DOD | Housing Protection | IP65 |
| Self Discharge | <2% per Month | Cell Type-Chemistry | LTO Cell |
| Cell in Series/Parallel | 5S/48P | Communication | Bluetooth |
| Discharge Parameters | Charge Parameters | ||
| Continuous Discharge Current | 150A | Charge Method | CC-CV |
| Pulse Discharge Current | 300A (<3S) | Charge Voltage | DC13.75V-DC14V |
| Recommended Volt. Disconnect | 7.5V | Recommended Float Voltage | DC13.5V-DC13.75V |
| BMS Discharge Cut-off Voltage | 7.5V | Recommended Charge Current | 72A |
| Reconnect Voltage | 10.5V | Maximum Charge Current | 150A |
| Short Circuit Protection | 100-200us | BMS Charge Cut-off Voltage | 14.25V |
| Temperature Parameters | |||
| Discharge Temperature | -40℃ to 85℃ | ||
| Charge Temperature | -40℃ to 85℃ | ||
| Storage Temperature | -10℃ to 35℃ | ||
| BMS High Temperature Cut-off | 90℃ | ||
![]()
